Applications: Widely applied in RFID systems like Logistics,personal identification,meeting attendance system,access system,anti-counterfeiting system and production process control,etc.

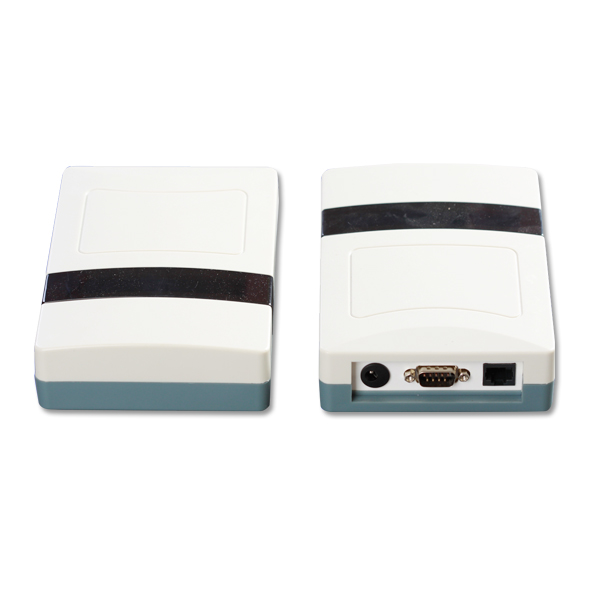

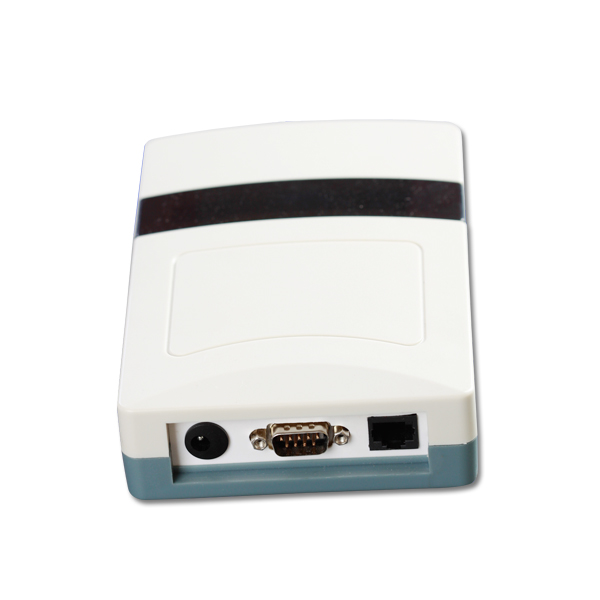

Item name	Desktop Passive UHF RFID Card Reader/Writer   ZD-RFID107
Working frequency	902～928MHz customized
Read distance	0-800MM
Write distance	0-40MM
Support Protocol	supports UHF EPC Gen2(ISO18000-6C), ISO18000-6B protocol electronic tags
Support Interface	support RS232,Wiegand interfaces(RJ45 optional)
Working mode	FHSS or Fixed frenquency transmission
Output power	maximum 30dbm(adjustable)
We can provide	DLL and Demonstration Software source code  to facilitate further development
More specifications	Low power disspation with single +6V DC power supply Support Interactive and Active working mode Output format and parameters can be set under active working mode
Size	160mmx110mmx40mm
Net weight	200g
Price terms	We accept EXW/ FOB /CNF/CIF price.
Payment term:	pay by T/T,  Western Union or paypal
	50% deposit of the total payment before bulk production.
Delivery time	7 days
