How to create RFID card?

RFID, or Radio Frequency Identification, is a technology that enables wireless communication between a reader and a tag. RFID cards are widely used for various applications, including access control, payment systems, and inventory management. Creating an RFID card involves several steps, from choosing the right components to programming and testing the final product. Here's a guide on how to create an RFID card.

Step 1: Understanding RFID Basics

Before starting the process, it's essential to understand the basics of RFID technology. RFID systems typically consist of three main components: an RFID tag, an RFID reader, and a host system. The tag is attached to or embedded in the object to be identified, and the reader sends radio waves to the tag and receives data back. The host system processes this data.

Step 2: Choosing RFID Components

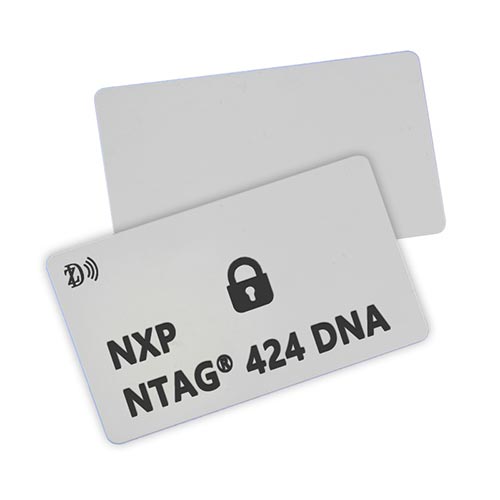

RFID Tag: RFID tags come in various forms, including cards, labels, and embedded devices. For creating an RFID card, you'll need an RFID card tag. These tags can be passive or active, depending on whether they have their own power source. Passive tags are the most common and are powered by the reader's radio waves.

RFID Reader: Choose an RFID reader that is compatible with your chosen tag and supports the frequency and protocol you require.

Software: Depending on your needs, you may also need RFID middleware or software for managing and processing RFID data.

Step 3: Designing the Card

RFID cards can be designed to fit your specific needs. You can choose the card's size, shape, and material. Consider factors like durability, readability, and aesthetics. If you're creating a custom design, you may need to hire a graphic designer or use specialized software to create the layout.

Step 4: Embedding the RFID Tag

Embedding the RFID tag into the card is a crucial step. This process can vary depending on the type of card and tag you're using. Some tags can be adhered directly to the card's surface, while others may require special embedding techniques. Ensure that the tag is securely attached and positioned correctly for optimal readability.

Step 5: Programming the RFID Tag

Once the tag is embedded in the card, you'll need to program it with the desired data. This data can be a unique identifier, such as a serial number, or specific information related to the card's intended use. Programming methods vary depending on the type of tag you're using, but it typically involves using an RFID writer or encoder to send the data to the tag.

Step 6: Testing the RFID Card

After programming, it's crucial to test the RFID card to ensure it's working correctly. Use your RFID reader to scan the card and verify that the correct data is read. Repeat the test several times to ensure consistent results.

Step 7: Implementing the RFID Card

Once you've tested and verified the RFID card's functionality, you can begin implementing it in your chosen application. This may involve integrating the RFID reader with your existing system or developing custom software to manage and process the RFID data.

Conclusion

Creating an RFID card involves several steps, from understanding the technology's basics to choosing the right components, designing the card, embedding the tag, programming it, testing it, and finally implementing it. With careful planning and execution, you can create a reliable and effective RFID card that meets your specific needs.
