Product Description

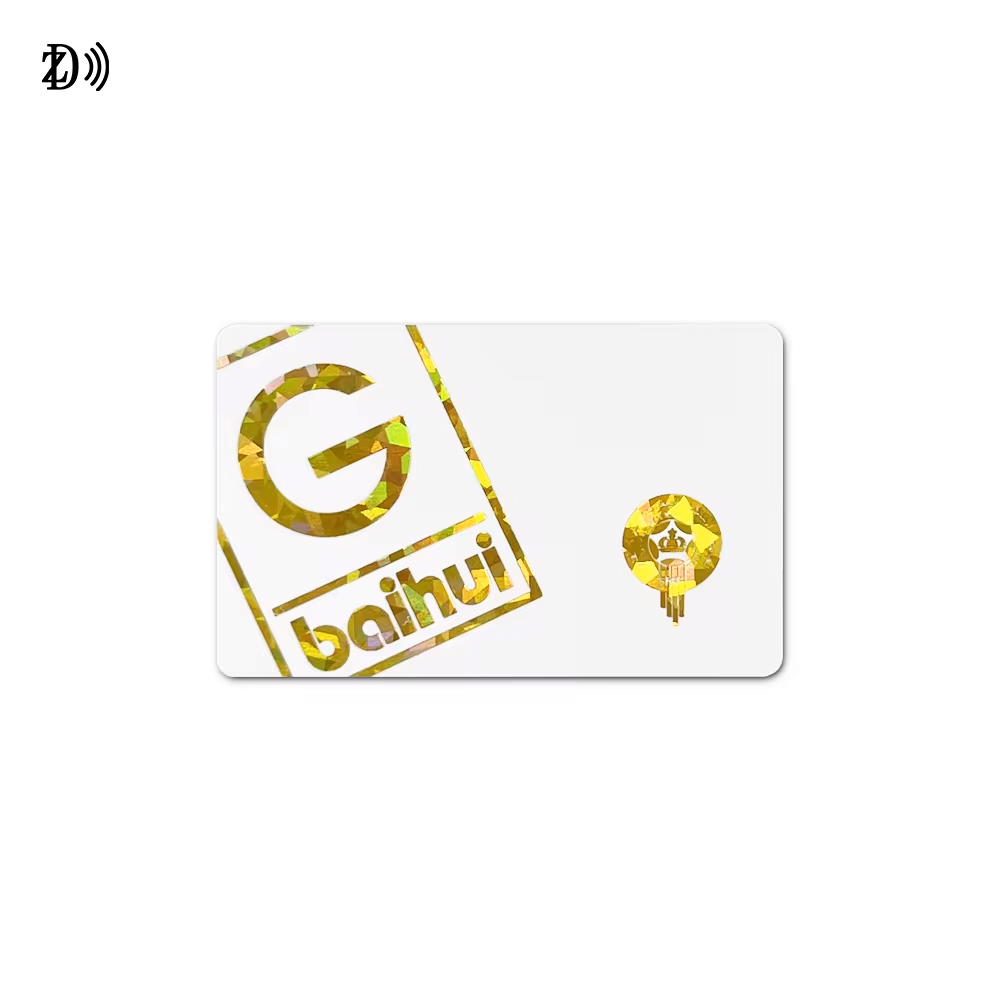

New Craft Cold Stamping Fancy Design PVC Card Plastic Customize Membership RFID Card
Product | Loyalty RFID Card | Material | PVC , PET , PP , ABS | Size | CR80 85.5*54mm or customized | Thickness | 0.84mm or customized | Surface | Glossy / Matt / Frosted finished | Printin | CMYK offset printing Cold stamping printing (We prefer design of AI/PSD/PDF format) |
Crafts | 1. Barcode, QR Code, Serial Number
2. Magnetic Strip (LOCO 300OE, HICO 600OE / 2750OE / 3000OE) 3. Signature panel or scratch panel
4. Embossed Number
5. Hologram as required
6. UV priting 7. Hole punching
8. Different chips
| Applications
| Voyalty VIP Services, Access management, Retail Management, Supermarket, School, Office Business, etc. | Sample | Free sample can be provided |

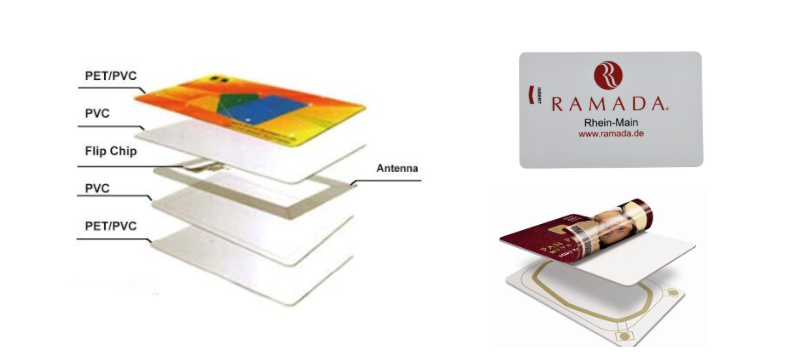

Structure of PVC Card

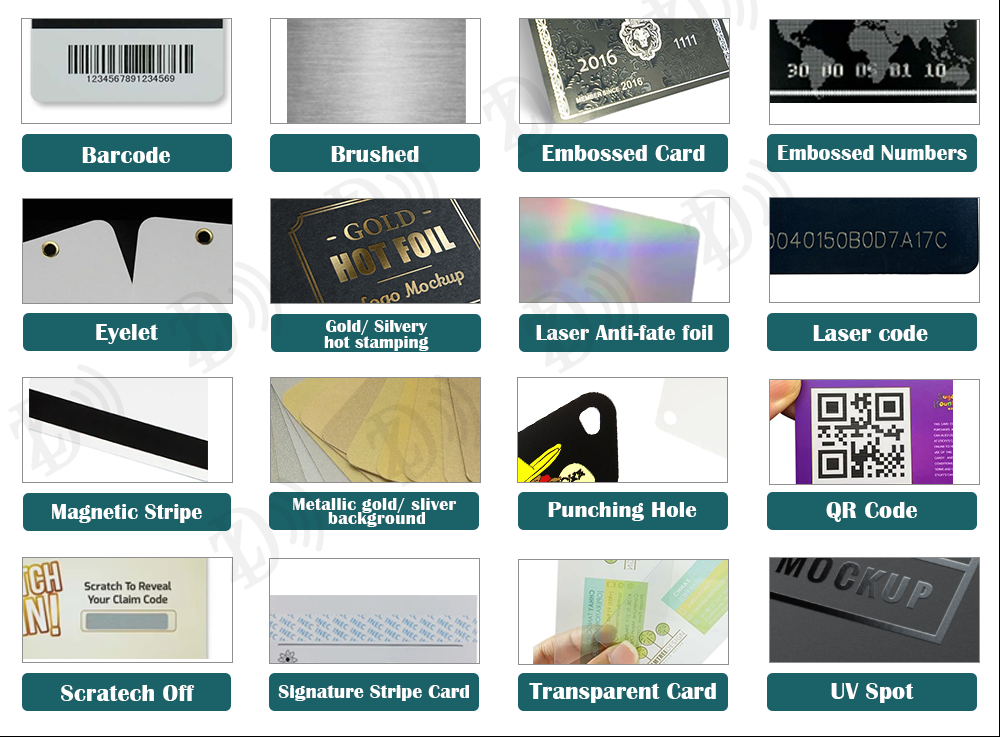

Craft & Personalized
Finish Options for PVC Card
Chips Options Chips available to choose:
Chip type | Capacity | Protocol | Frequency | Function | Manufacture | TK4100 | 64 Bits | 11784/85 | 125KHz | Read only | TK | EM4200 | 64 Bits | Read only | EM-Marin | EM4305 | 512 Bits | Read/Write
| EM-Marin | EM4450 | 1k Bits | EM-Marin | ATMEL5577 | 363 Bits | Atmel |
Chip type | Capacity | Protocol | Frequency | Function | Manufacture | FM11RF08 | 1 K Byte | ISO14443A | 13.56MHz | Read/Write | Fudan | FM13HF01NTS | 1 K Bits | ISO/IEC15693 | 13.56MHz | Read/Write | Fudan | MIFARE Classic® 1K | 1K Byte | ISO14443A | 13.56MHz | Read/Write | NXP | MIFARE Classic® 4K | 4K Byte | MIFARE Ultralight® EV1 | 80 Byte | 164 Byte | MIFARE Ultralight® C | 192 Byte | MIFARE and MIFARE Classic® are registered trademarks of NXP B.V. and are used under license. | MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license. | NTAG® 213 | 180 Byte | ISO14443A | 13.56MHz | Read/Write | NXP | NTAG® 215 | 540 Byte | NTAG® 216 | 924 Byte | NTAG® 213 TagTamper | 184 Byte | NTAG® 424 DNA | 416 Byte | NTAG® 424 DNA TagTamper | 416 Byte | NTAG are registered trademarks of NXP B.V. and are used under license. | MIFARE Plus® EV2 | 2K Byte 4K Byte | ISO14443A | 13.56MHz | Read/Write | NXP | MIFARE Plus® SE | 1K Byte | MIFARE and MIFARE Plus® are registered trademarks of NXP B.V. and are used under license. | MIFARE® DESFire® EV1 2K | 2K Byte | ISO14443A | 13.56MHz | Read/Write | NXP
| MIFARE® DESFire® EV1 4K | 4K Byte | MIFARE® DESFire® EV1 8K | 8K Byte | MIFARE® DESFire® EV2 2K | 2K Byte | MIFARE® DESFire® EV2 4K | 4K Byte | MIFARE® DESFire® EV2 8K | 8K Byte | MIFARE® DESFire® EV3 2K | 2K Byte | MIFARE® DESFire® EV3 4K | 4K Byte | MIFARE® DESFire® EV3 8K | 8K Byte | MIFARE DESFire are registered trademarks of NXP B.V. and are used under license. |
| ICODE® SLI | 1024 Bits | ISO15693 | 13.56MHz | Read/Write | NXP | ICODE® SLIX | 1024 Bits | ICODE® SLIX 2 | 2560 Bits | ICODE® SLIX-S | 2048 Bits | ICODE® SLIX-L | 512 Bits | ICODE are registered trademarks of NXP B.V. and are used under license. |
|
Chip type | Reserved | EPC | User |
Protocol |
Frequency | Access (bits) | Kill (bits) | EPC (bits) | user (bits) | |
NXP | UCODE® 9 | 32 | 32 | 96 | - | ISO18000-6C Class1 Gen 2 | 860~960MHz | UCODE® 8/8m | 32 | 32 | 128/96 | 0/32 | UCODE® 7m | 32 | 0 | 128 | 32 | UCODE® 7 | 32 | 32 | 128 | 0 | UCODE are registered trademarks of NXP B.V. and are used under license. | Impinj | Monza 4QT | 32 | 32 | 128 | 512 | ISO18000-6C Class1 Gen 2 | 860~960MHz | Monza 4E | 32 | 32 | 496 | 128 | Monza 4D | 32 | 32 | 128 | 32 | Monza R6 | None | None | 96 | None | Monza R6-A | 32 | 32 | 96 | None | Monza R6-P | 32 | 32 | 96/128 | 64/32 | M730 | 32 | 32 | 128 | None |

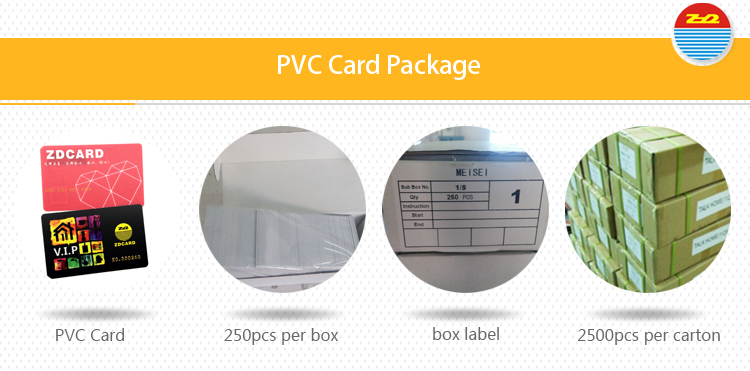

Packing & Delivery
How to ship Plastic Card?
1. Door to door express: DHL, FedEx, UPS, TNT.
2. By Air or by sea.
3. Customers specifying freight forwarders.
|
